WebDescription:

Channels The following standards can be set:
E1 - Italy v Spain - 40CH AM / FM - 4W
I2 - Italy - 36CH AM / FM - 4W
DE - Germany - 80CH FM 4W / 12CH AM 1W
D2 - Germany - 40CH FM 4W / 12CH AM 1W
EU - Europe - France 40CH FM 4W / 40CH AM 1W
CE - CEPT (default) - 40CH FM 4W
UK - Great Britain - 40CH FM 4W (UK frequencies)
PL - Poland - 40CH AM / FM 4W (Polish frequencies)
Modes
AM / FM
Features & Functions
backlit 1.8 inch LCD screen
ESP function
8 memory channels
Transmitting power switched 100mW / 1W / 4W
Scan function
Dual Watch function
S-meter and display of power / level of modulation
switchable keypad lock
Quick access to channel 9 and 19
Channel and frequency display
RX / TX indicator
AM / FM display
Frequency band display
Key to quickly access the last used channel
Up / Down buttons on the front
BNC antenna connector on device
PL connector on the supplied adapter
Low battery indicator
Microphone
Standard double-standard jack (2,5 / 3,5 mm)
We also Bluetooth headsets available!
Power supply
9.0 V DC with 6 x AA 1.5V Alkaline
7.2 V with 6 x 1.2V AA Ni-MH cell (Ni-MH / Alkaline)
12V DC external
Dimensions in mm (WxHxD)
55 x 146 x 38 (without antenna)
Weight
approximately 218g (without batteries and antenna)

** ATTENTION Important Note: Removing caused when using the 12V DC adapter, please arrange the batteries from the device!


Delivery

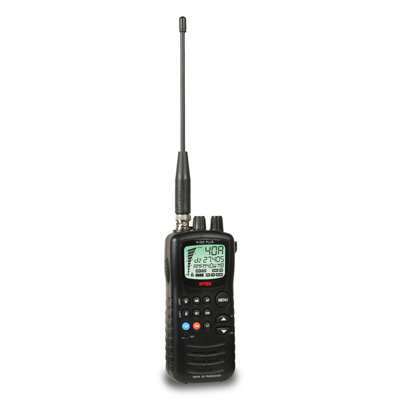

H-520 handheld radio
flexible BNC Mountable antenna (length 19.5 cm)
Strap
Belt clip, metal
12V DC adapter included for external antenna cable PL
230V AC power adapter
Instructions
Weight: 0.22 kg
