Paragliding Radio setup for use with open helmets

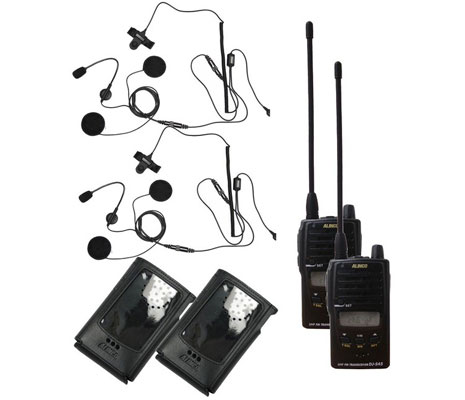

SET at a great price consisting of the following components:
2 x Alinco DJ S45 CQL radios
2 x ALINCO ESC-40 Protective bag
2 x HS-4000-PRO-S helmet headset for open face
DJ S45 CQL Specifications radio
| Frequency range | - 446.00625 to 446.09375 MHz (PMR 446)
- 433.06000 to 434.78000 MHz (LPD)
- 420.000 to 473.995 MHz (on request)
|
| Transmit power | - 500mW
- for full output power, the battery pack EBP-60 (3.7 V) required
|
| Features & Functions | - 39 CTCSS tones Pilot (transmitter and evaluator)
- 4 more special pilot tones 1000 / 1450 / 1750 or 2100 Hz
- Semi-duplex operation (transmit on one channel to another receiving) possible
- Programmable center frequency of 5 kHz to 99.995 MHz (+ or -)
- 100 stations (save your favorite channels, the CTCSS tone, the frequency offset, the direction of the frequency deviation, Skip function and function BCLO)
- Memory locations either by hand or computer Writeable (optional ERW-4C or ERW-7C programming cable)
- Programming software for free under www.alinco.com
- SCAN different modes (including CTCSS scan)
- Low battery indicator on the LCD Dipslay
- Battery saving function activated
- Received field strength and transmission power is indicated by bars on the display
- Squelch (squelch) can be adjusted in 20 steps
- Monitor function (for receiving the weakest signals)
- selectable time-out timer (Time-Out Timer - selectable 30-450 sec)
- programmable APO (automatic power off after 30/60/90/120 minutes)
- Tastaturquittungston (also aubschaltbar)
- Bell function (you alerted if a signal is received)
- Rogerbeep function (can be deactivated)
- BCLO switchable function (transmission channel suppression Busy User)
- VOX function in connection with the headset ALINCO EME-12A / EME-13A / EME-15A (optional)
|
| Headset-/Mikrofonanschluss | - S standard double jack (3,5 / 2,5 mm) on top
- wide range of audio accessories
- Bluetooth headsets available from us!
|
| Power supply | - available with two standard AA cells
- or EBP-60 Battery Pack (optional)
- otherwise on the side DC power jack (3.0 to 6.0 V DC)
|
| Dimensions (mm) WxHxD | |
| Weight | |
Delivery DJ S 45 CQL radio
Alinco DJ-S45CQL radio
Belt Clip
Strap
Instructions
Weight: 0.56 kg
