WebDescription:

 - Operating software
  The operating program in this charger is executed with mutual links and communications with every
component to prevent any possible error, so it introduces the maximum safety. Especially, the charging

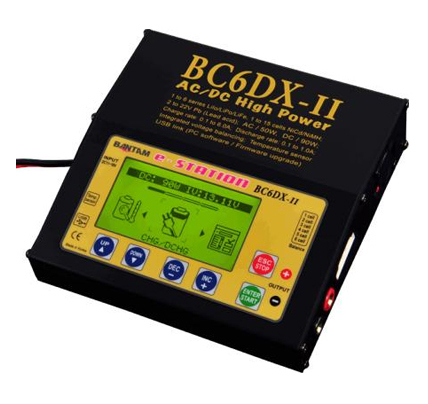

algorithm is so multifarious that you can select the best program to suit your requirement. And BC6DX-II
has a large LCD for showing various information including charge/discharge graphs during the process.

  - Firmware upgrade
  User can upgrade the firmware of charger from the file in PC via USB. When the firmware needs to
upgrade, user can download the upgrade file from the company web page and easily replace the firmware
with newer version.

  - Dual input power
  BC6DX-II employs the circuit that can be operated at AC(Aternating Current) or DC(Direct Current) input
power. For AC input, the charger contains a AC-DC switching power supplier inside, which has 6A of
power capacity and maximum output power of 50watts for charging. As a result, it can charge up to 15
cells of NiCd/NiMH and 6 series of Lithium batteries. When you use DC input power, the circuit power will
be increased to 90watts.

 -  Monitor the individual voltages on discharge
  BC6DX-II will monitor the individual voltages of the Lithium battery pack during discharge process as well
as ‘FAST’ and ‘STORAGE’ mode. If the voltage of any one cell varies abnormally, the process will be
stopped with the error message.

 - Maximum safety
   Delta-peak sensitivity : The automatic charge termination program works on the principle of the Delta-
peak voltage detection. (NiCd/NiMH)
   Auto-charge current limit : When charging NiCd or NiMH at 'AUTO' current mode, you can set the upper
limit of charge current to avoid from feeding high current to the battery. This is very useful when charging
the low impedance and small capacity NiMH battery in 'AUTO' mode.
   Capacity limit : The charging capacity always calculated by multiple of the charging current and time. If
the charging capacity exceeds the limit the process will be terminated automatically when you set the
maximum value.
  Temperature limit : The temperature of the battery on charging or discharging will be raised by its internal
chemical reaction. If you set the limit of temperature the process will be expired forcibly when the limit has
been reached.
   Processing time limit : You can also restrain the maximum processing time to prevent any possible
defect.

 -  Cyclic charging/discharging
   Perform 1 to 10 cycles of charge>discharge or discharge>charge continually for battery refreshing and
balancing at both outputs.

 -  PC based analysis using USB communication
   For technical expert, BC6DX-II offers PC based program can analysis the characteristic of the battery via
USB port. It shows a graph of voltage, current, capacity and temperature curves. It also shows the
individual voltage of each cell in the Lithium battery pack. This program can run on both outputs with single
USB link to PC. You can download the software at here.
