    * Input power source requirement
   When the charger runs on its maximum power, the input power should be enough to run the
 charger safely and effectively. If the input voltage is lower than 11V, the charger may be shut
 down or limited by its circuit power. To utilize the charger’s maximum power, the input power
 source should have good power above 15V and 35A. If the input voltage is lower than 12V, the
 charger’s charging power can be limited by 200W.

-  Operating software
  Every operating program in the unit is controlled with mutual links and communications to prevent every
possible error, so it introduces the maximum safety, such as input voltage warning, reverse polarity
protection and Lithium cell-count input error warning. The entire firmware can be upgraded via USB from
internet download at our web page, when there needs to be changed.

 - High-power and high-performance circuit

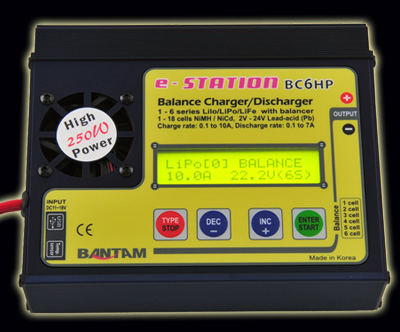

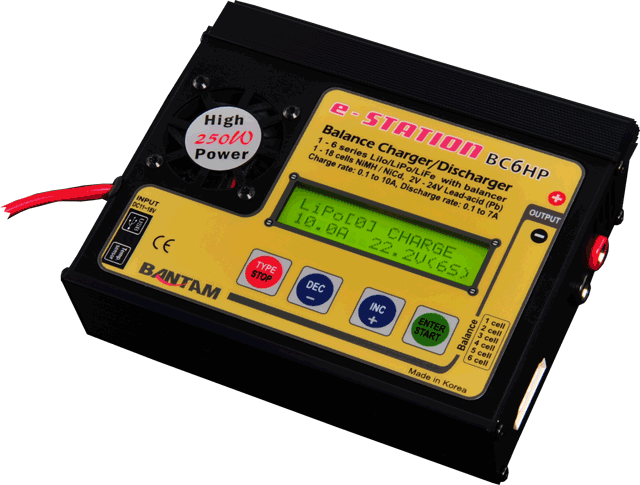

  BC6HP employs the circuit that has maximum output power of 250Watts. As a result, it can charge or
discharge up to 18 cells of NiCd/NiMH and 6 series of Lithium batteries with maximum current of 10A.
Furthermore, the cooling system is so efficient that can hold such a power without any trouble running
the circuit or the operating program.

 -  Accept various types of Lithium battery
  BC6HP can accept three types of Lithium batteries - LiIo, LiPo and LiFe. They have different
characteristics by their chemistry. You can select any one of them that you are going to process before
the job.

 - Lithium battery 'Fast' and 'Storage' mode
  You can charge Lithium battery for special purposes. 'Fast' charge reduces the charging time of Lithium
battery and 'Storage' mode controls the final voltage of the battery to be suit for long time storage.

 -  Data store/load
   For users convenience, it can store maximum 10 data of different batteries. You can establish the data
contains program setting of the battery to charge or discharge. These data can be called back at any time
you need and the process can be executed without program setting.

 - Maximum safety
   Delta-peak sensitivity : The automatic charge termination program works on the principle of the Delta-
peak voltage detection. (NiCd/NiMH)
   Auto-charge current limit : When charging NiCd or NiMH at 'AUTO' current mode, you can set the upper
limit of charge current to avoid from feeding high current to the battery. This is very useful when charging
the low impedance and small capacity NiMH battery in 'AUTO' mode.
   Capacity limit : The charging capacity always calculated by multiple of the charging current and time. If
the charging capacity exceeds the limit the process will be terminated automatically when you set the
maximum value.
  Temperature limit : The temperature of the battery on charging or discharging will be raised by its internal
chemical reaction. If you set the limit of temperature the process will be expired forcibly when the limit has
been reached.
   Processing time limit : You can also restrain the maximum processing time to prevent any possible
defect.

 -  Cyclic charging/discharging
   Perform 1 to 5 cycles of charge>discharge or discharge>charge continually for battery refreshing and
balancing at both outputs.

 -  PC based analysis using USB communication
   For technical expert, BC6HP offers PC based program can analysis the characteristic of the battery via
USB port. It shows a graph of voltage, current, capacity and temperature curves. It also shows the
individual voltage of each cell in the Lithium battery pack. This program can run on both outputs with single
USB link to PC. You can download the software at here.
