LDG AT-100-PRO-II automatic antenna tuner

Automatic antenna tuner for fast tuning of antennas in the frequency range of 1.8 to 54 MHz.

This Item ships from the UK

Product Info
Shipping info

WebDescription:

Automatic antenna tuner for fast tuning of antennas in the frequency range of 1.8 to 54 MHz.

4000 memory locations (2000 per antenna) for frequently used Scan Rate accelerate the tuning process in addition to a few seconds.

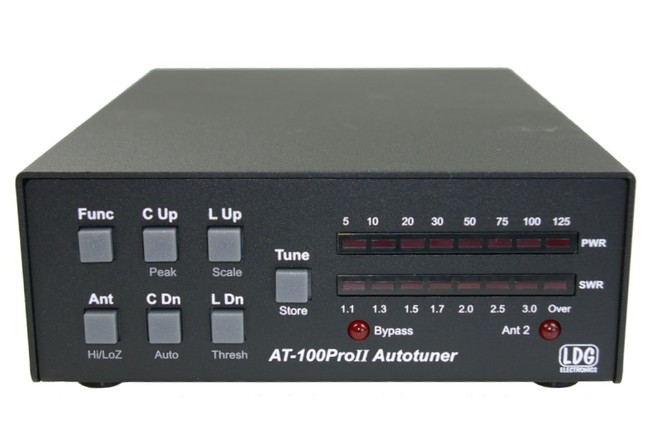

Easy to read LED display for output power, SWR, antenna selection and bypass on the front page.

Specifications

Frequency range	1.8-54 MHz
max. Transmission power	125 watts PEP SSB / CW (6m max. 100 watts SSB, CW)
Minimum power for tuning	about 1 watt
Tuning time	approximately 0.5 to 6 sec (<0.2 sec in memory mode)
Antenna impedance	6000-1000 ohm / ohm 16-150 on 6m / 6-4000 ohms with optional 4:1 Balun LDG RBA-1

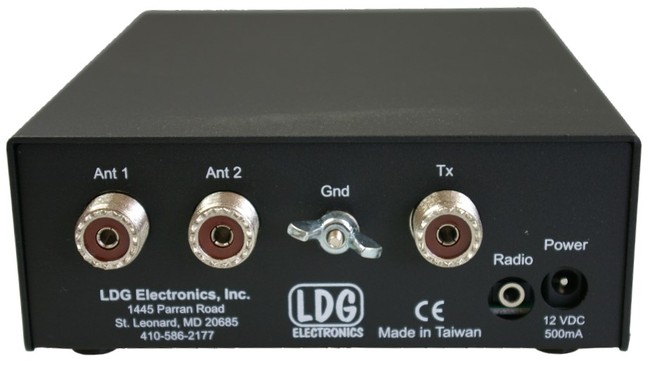

Connections	PL jacks (SO-239) on the back
Dimensions WxHxD in mm	approximately 191 x 51 x 140
Weight	about 1kg
Power supply	11-16V DC, 500mA

A DC power cord is included. Interface cable for your transceiver are not included and are available as an option!
Weight: 0.74 kg

Shipping info: This Item ships from the UK
