LDG AT-200 automatic antenna tuner KW PROII +6 m

Automatic antenna tuner for fast tuning of antennas in the frequency range of 1.8 to 54 MHz.

Tell a Friend
£195.00

This Item ships from the UK

WebDescription:

Automatic antenna tuner for fast tuning of antennas in the frequency range of 1.8 to 54 MHz.

With the LDG AT-200 Pro can dipoles, vertical, inverted-V and coax-fed antennas are tuned very simple push of a button
With an optional balun can also cross-wire or parallel wire fed antennas are tuned
An integrated switch allows connection of two antennas.

Accelerate over 16,000 presets for frequently used in addition to tuning the Scan Rate few seconds.

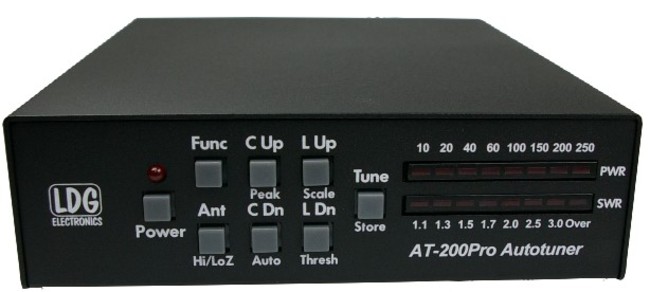

Easy to read LED display bar showing output power and SWR on the front page.

Mt of a function key on the front panel displays additional features such as status and mode by pressing a button

Specifications

Frequency range 1.8-54 MHz
max. Transmission power 250 Watts PEP SSB / CW (6m max. 100 watts)
Minimum power for tuning about 5 watts
Tuning time approximately 0.5 to 6 sec (<0.2 sec in memory mode)
Antenna impedance 6000-1000 ohm / ohm 16-150 on 6m / 6-4000 ohms with optional 4:1 Balun LDG RBA-1

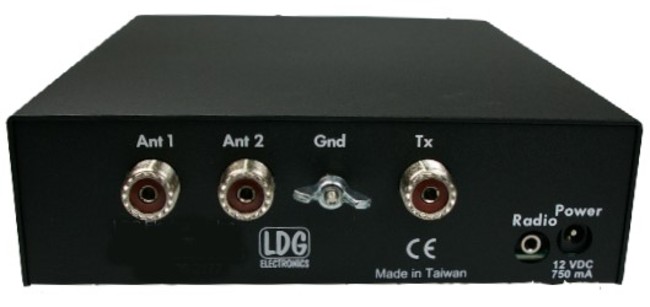

Connections PL jacks (SO-239) on the back
Dimensions WxHxD in mm 180 x 57 x 240
Weight about 1kg
Power supply 11-16V DC, 750mA


A DC power cord is included. Interface cable for your transceiver are not included and are available as an option!
Weight: 1.26 kg

Videos:

Automatic antenna tuner for fast tuning of antennas in the frequency range of 1.8 to 54 MHz.

With the LDG AT-200 Pro can dipoles, vertical, inverted-V and coax-fed antennas are tuned very simple push of a button
With an optional balun can also cross-wire or parallel wire fed antennas are tuned
An integrated switch allows connection of two antennas.

Accelerate over 16,000 presets for frequently used in addition to tuning the Scan Rate few seconds.

Easy to read LED display bar showing output power and SWR on the front page.

Mt of a function key on the front panel displays additional features such as status and mode by pressing a button

Specifications

Frequency range 1.8-54 MHz
max. Transmission power 250 Watts PEP SSB / CW (6m max. 100 watts)
Minimum power for tuning about 5 watts
Tuning time approximately 0.5 to 6 sec (<0.2 sec in memory mode)
Antenna impedance 6000-1000 ohm / ohm 16-150 on 6m / 6-4000 ohms with optional 4:1 Balun LDG RBA-1
Connections PL jacks (SO-239) on the back
Dimensions WxHxD in mm 180 x 57 x 240
Weight about 1kg
Power supply 11-16V DC, 750mA


A DC power cord is included. Interface cable for your transceiver are not included and are available as an option!
Weight: 1.26 kg
