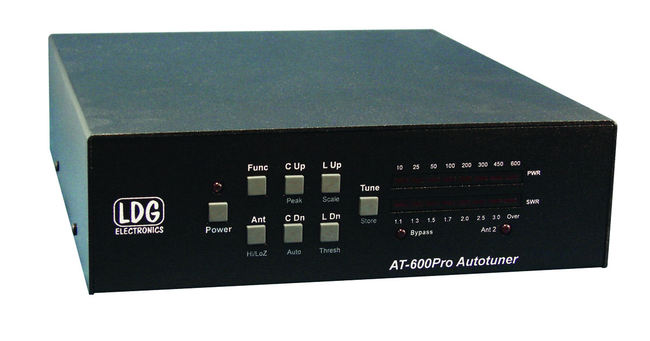

LDG AT-600 automatic antenna tuner

Automatic antenna tuner for fast tuning of such dipoles, verticals, mobile antennas in the frequency range of 1.8 to 54 MHz.

This Item ships from the UK

WebDescription:

Automatic antenna tuner for fast tuning of such dipoles, verticals, mobile antennas in the frequency range of 1.8 to 54 MHz.

two antenna inputs

4000 memory (2000 per antenna input)

automatic and semi-automatic operation

Operating without control cable also possible

LED display for SWR and watt display

Adjustable SWR value for auto-tuning

Ground terminal on rear side

Bypass Mode

manual memory

Specifications

Frequency range	1.8-54 MHz (continuous)
max. Transmission power	600 watts PEP SSB / CW 300 watts RTTY 250 watts on 6m
Performance tuning	5 - 125 watts PEP SSB
Tuning time	approximately 0.5 to 6 sec (<0.2 sec in memory mode)
Antenna impedance	600-800 ohm / ohm 16-150 on 6m
Connections	PL jacks (SO-239) on the back
Power supply	11-16V DC, max. 750mA
Abmessungenin mm	215 x 65 x 255
Weight	about 1.6 kg

Included is a Icom interface cable, a DC power cable and a PL-PL coax
