LDG AT-897 Plus automatic antenna tuner

Automatic antenna tuner suitable for the Yaesu FT-897D transceiver.

This Item ships from the UK

Product Info
Shipping info

WebDescription:

Automatic antenna tuner suitable for the Yaesu FT-897D transceiver.

The AT-897 is via the CAT interface powered (cable included), a second socket ensures that the CAT interface remains from other devices (computers) can be used.

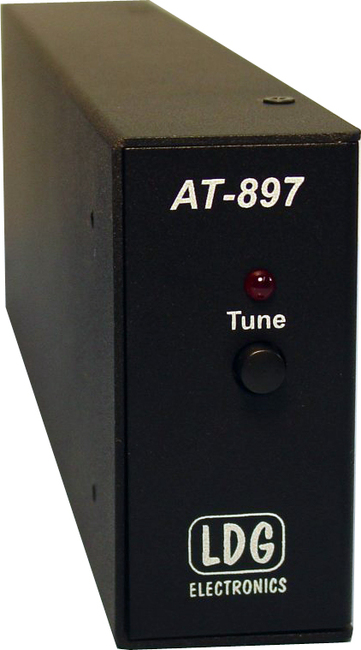

200 memory locations store your preferred frequencies and provide a lightning-fast tuning. To vote in one of the modes CW, FM or AM and found a carrier triggered by pressing the button on the front of the tuning process.

The AT-897 can also be the side of a FT-897D transceiver can be mounted.

Specifications

Frequency range	1.8-54 MHz
max. Transmission power	100 watts
Tuning time	approximately 1-7 sec (typically 4 sec)
Antenna impedance	600-800 ohms

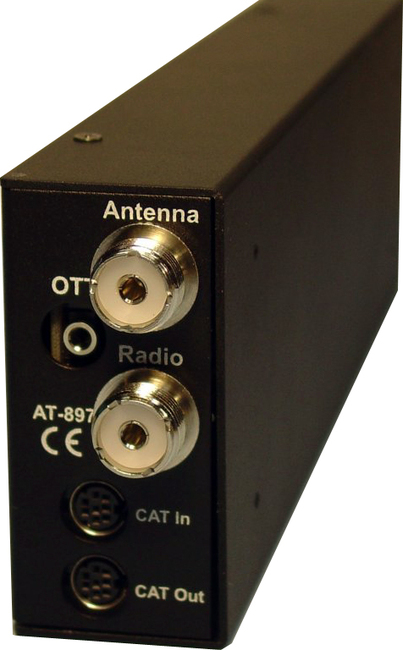

Connections	PL jacks (SO-239) / CAT two jacks (In / Out) / OTT jack (3.5 mm jack) on the back
Power supply	11-14V DC, 300mA
Dimensions WxHxD in mm	approximately 290 x 83 x 38
Weight	about 1kg

included a CAT DIN-8 cable is used to power the tuner. Additional cables are available as an option (eg coax PL-PL)
Weight: 0.56 kg

Shipping info: This Item ships from the UK
