LDG KT-100 Automatic Antenna Tuner for Kenwood TRX

The LDG KT-100, Automatic antenna tuner tailored for Kenwood transceivers. The ideal alternative to Kenwood AT-300 tuner!

This Item ships from the UK

Product Info
Shipping info

WebDescription:

Automatic antenna tuner tailored for Kenwood transceivers. The ideal alternative to Kenwood AT-300 tuner!

This tuner is with the exception of the TS-480HX compatible with all Kenwood transceivers, which are also the Kenwood AT-300 tuner

Suitable eg for KENWOOD TS-50, TS-480-SAT, TS 570, TS 690, TS 850, TS 870, TS-2000.

The KT-100 does in seconds just about everything from what He "placed before" is. For example Vertikalanntennen, dipoles, coax-fed antenna

Specifications

Frequency range	1.8-54 MHz
max. Transmission power	125 watts PEP SSB / CW (6m max. 100 watts SSB, CW)
Minimum power for tuning	about 1 watt
Tuning time	typical. 0.1 to 6 sec (too quickly in memory mode)
Antenna impedance	400-800 ohm / ohm 16-150 on 6m / 16-3200 ohms with 4:1 Balun LDG RBA-1 (optional)
Memory locations	2000

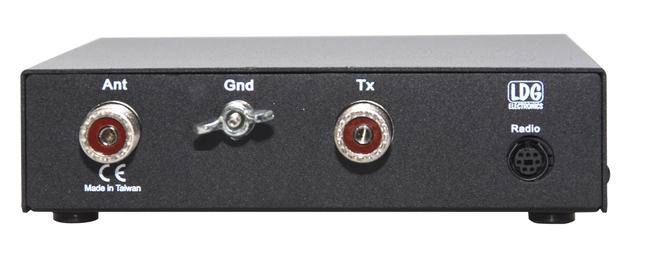

Connections	PL jacks (SO-239), screw GND (ground) cable and connector for transceiver on the back
Power supply	from the transceiver
Dimensions WxHxD in mm	160 x 45 x 160
Weight	about 1 kg

Included is a Kenwood interface cable and a PL-PL coax
