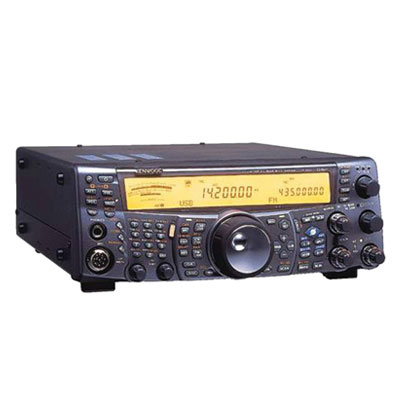

All Mode Multiband Transceiver KW / 50 / 144 / 430 MHz

23cm retrofitted with Kenwood UT-20 module installation

Technical data

Frequency range TX (transmitter)
1.81-52 (all amateur radio bands) / 144-146 / 430-440 MHz
Frequency range RX (receiver)
Main = 0,5-30 / 50-54 / 144-146 / 430-440 MHz
Sub = 144-146 / 430-440 MHz
Transmit power
KW/50 MHz: 100 W (SSB / CW / FSK / FM) / 25 W (AM)
VHF: 100 W / AM: 25 W
UHF: 50 W / AM: 12.5 W
min output power (all modes): 5W (160-70cm)
Modulation
A1A (CW), J3E (LSB, USB), A3E (AM), F3E (FM), F1D (FSK), F2D (AFSK)
Memory Channels
300 alphanumeric
Features & Functions
internal antenna tuner (1.81 MHz to 50 MHz range)
DX Cluster reception via built-in TNC (1K2 / 9K6)
Simultaneous reception of two bands (144/433 MHz sub band only AM / FM)
IF-DSP (main band) and NF-DSP (Sub Band)
1750 Hz tone call
Dual-mode satellite tracking and CTCSS function
CTCSS encoder / decoder / Suchalauf (39 CTCSS tones)
DCS encoder / decoder / search (104 DCS codes)
Built-in serial interface
of PC-programmable presets
Automatic Simplex Checker
Band Scope
Transveter display function up to 19.99999 GHz
Internal VOX
APRS function
TX / RX equalizer
Connection for external antenna tuner
Connection for headphones (6.3 mm jack)
Connection for two external speakers (3.5 mm phone jack)
and much more
Microphone
8-pin
Antenna connector
Five antenna sockets (2x KW, 1x VHF, UHF 1x, 1x 23cm + 1 x RCA jack for a receiving antenna.
Power supply
13.8 V DC + / -15% (max. 20.5 Amp)
Dimensions in mm (WxHxD)
270 x 96 x 317
Weight
7.8 kg approx

Delivery
KENWOOD TS-2000E Transceiver, microphone, DC cable, fuses, manual
Weight: 7.2 kg
