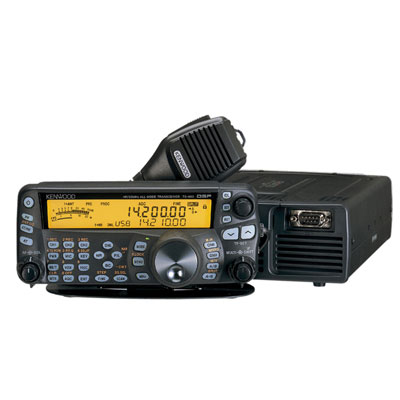

HF + 6m Transceiver Allmode DSP with 200 watts of RF output power

Technical data

Frequency range TX (transmitter)
1.81-52 (all amateur radio bands)
Frequency range RX (receiver)
30 kHz - 60 MHz continuous
Transmit power
HF: 200 W (SSB / CW / FSK / FM) / 50 W (AM)
6m: 100W (SSB / CW / FSK / FM) / 25 W (AM)
Modes
A1A (CW), J3E (LSB, USB), F1B (FSK), F3E (FM), A3E (AM)
Memory Channels
100 alphanumeric
Features & Functions
16-bit DSP and NF TX / RX equalizer
Separate control unit with built-in speakers
Comfortable PSK-31 operation
Built-in RS-232 interface
Built-in Auto-Tune function CW
Two optional crystal filters can be installed
variety of search options (VFO, Memory, CTCSS, ringtones, etc.)
CTCSS encoder & Evaluation (42 CTCSS Codes)
of PC-programmable presets (alphanumeric writable 8 characters max.)
other functions controlled by PC (ARCP-480 control software for free downlaod on the Kenwood website available)
Remote operation via Internet possible 1750 Hz tone call
APO function
Programmable Time Out Timer
Data Connection for External TNC
D-sub 9-pin Com Port
Receiver Noise Blanker
Internal VOX
controlled language processor (for SSB, FM, AM)
DSP
FSK reverse function
Ground Screw
3.5mm jack (headphone, ext. Loudspeakers, straight key and paddle)
Audio output power 2 W (8 ohms, THD 10%)
Mini-DIN 6-pin connector (for RTTY, FSK, PR)
Mini-DIN 8-pin connector for control Endsfufen
Connector for external antenna tuner
Microphone
8-pin Western-modular microphone jack
Microphone impedance 600 ohm
Antenna connections
2 x PL-connector (50 Ohm)
Power supply
13.8 V DC + / -15%
Power Consumption
RX max. 1.5 A / TX max. 41 A
Dimensions in mm (WxHxD)
Unit approx 179 x 69.5 x 278 mm
Panel approximately 183 x 78 x 68 mm
Weight
Device around 3.2 kg
Panel 0.5 kg

Delivery
TS-480HX transceiver
Microphone
DC Cable
Other installation material
Instructions
Weight: 3.26 kg
