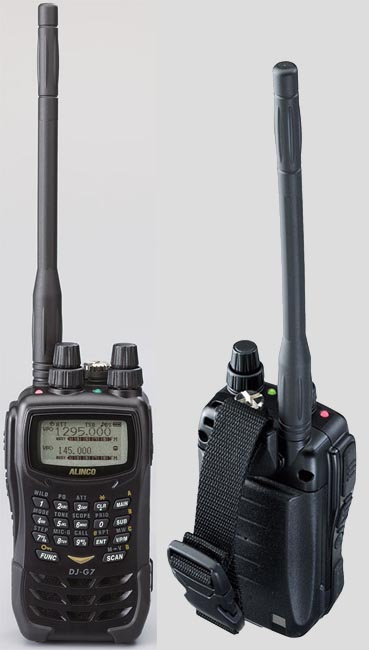

Alinco dj-g-7-ec handheld radio vhf/uhf/23cm

2m / 70cm / 23cm transceiver with wideband RX

Tell a Friend
£329.99

This item ships from the UK

WebDescription:

2m / 70cm / 23cm transceiver with wideband RX



Get ready for action as you hear signals that you may never have heard before.
The DJ-G7 tunes 0.530-1299.995MHz continuously, and you can enjoy full duplex receive in combination with the amateur 144/430/1200MHz bands. AM and WFM modes allow you to hear the aviation and broadcast bands and with the broadcast preset memories and built-in AM bar antenna radio listening is easier than ever. Enjoy a variety of scan modes and options that include Time -set scan, 50 pair of programmable scan memories, Timing adjustable priority scanning and Alinco's patented Channel-Scope?visualize the presence of radio signals on the display. There are also two modes of bug detector functions.
*Restrictions may apply to frequency combinations for Full-duplex QSO.

Customize the DJ-G7 to your personal preferences.
Set the parameters to suit your needs and likes. Choose the display language (English/Japanese) lamp function and display contrast and brightness. Select Auto-Power Off / Battery save function. Turn sounds (beep, bell, end beep) on or off. Set the transmitter for VOX / TOT / BCLO. Control the DTMF burst timing, link your scan banks, set priority scan-timing and memory skip functions and more. Personalize the DJ-G7 to make it, "YOUR DJ-G7".

About IPX7 Designation
The IPX7 designation provides for limited waterproofing of the radio. The specifications are immersion in one meter (approx 3ft) of still sweet water for up to 30 minutes. This compatibility is factory guaranteed for a period of one year provided all the jack covers are securely in place, any accessories connected must be genuine Alinco water-proof accessories and the radio has not been disassembled by the customer. The factory has tested and made the equipment compatible to IPX7 certification during engineering. However, please understand that this equipment is NOT certified IPX7 compliant but is designed to remain operational when used in rain, severe weather or in accidental cases of dropping it in water when used in extreme conditions and is in no way stating that you should attempt use the radio under water or submerge the radio for cleaning. Warranty will not cover radios that are water / salt damage due to negligence or misuse of the product.

Specifications

Frequency range TX (transmitter)
  • 144 to 145.995 MHz / 430 to 439.995 MHz / 1240 to 1299.95 MHz (modifiable)
  • Frequency range RX (receiver)
  • 0522 to 1299.995 MHz continuous (latest version "EC")
  • Transmission power
    Channel spacing
  • 5 / 6,25 / 8,33 / 10 / 12.5 / 15 / 20 / 25 / 30 / 50 / 100 / 125 / 150 / 200 / 500 kHz and 1 MHz
  • Memory channels
  • 1000
  • Features & Functions
    • very robust, water-resistant housing (meets IPX-7 standards)
    • Keyboard and display lighting (dimmable & abschalbar)
    • Full-Duplex
    • built-in ferrite antenna for AM reception
    • 39 CTCSS codes (decoder / encoder)
    • 104 DCS codes (decoder / encoder)
    • DTMF Autodialer (9 memory up to 16 digits)
    • VOX function (7 levels of sensitivity)
    • Packet radio-ready (1K2)
    • various scan functions (eg, time-set scan, priority scan, etc.)
    • 50 selectable scan edges
    • APO function
    • Battery Save feature
    • BCLO function
    • switchable transmission time (TOT function)
    • Skip Memory Function
    • exterme DC jack
    • Battery Save feature
    • Connectivity for audio accessories
    • by PC programmable (option: interface ERW-4C or ERW-7)
    • Reset function
    • Stand Charger with LED status display in the delivery
    Antenna connector
  • SMA connector
  • Power supply
  • ext. DC jack: 4.5 - 16V DC (negative ground) or battery pack 7.4V DC
  • Current consumption
  • TX: 1.6 A (2m) / 1.8 A (70cm) / 0.8 A (23cm)
  • RX: about 200mA
  • Dimensions in mm (WxHxD)
  • 60 x 115 x 30mm (without protruding parts)
  • Weight
  • about 296g

  • Delivery

  • Alinco DJ-G7EG transceiver
  • Battery pack EBP-73 (Li-Ion / 1200mAh)
  • Desktop charger EDC-173 AC Adapter EDC-151A
  • Flexible Antenna EA-163
  • EBC-23 Belt Clip
  • Strap
  • Instructions
    Weight: 0296 kg
