WebDescription:

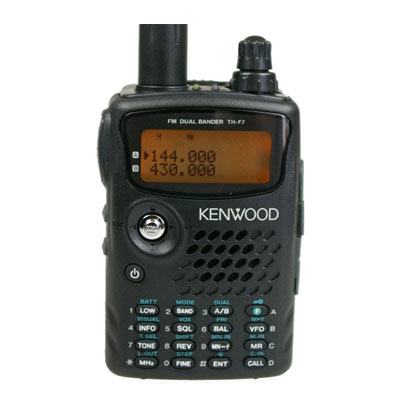

The all-rounder from Kenwood in a top quality.

Technical data

Frequency range TX (transmitter)
144-145.995 / 430 to 439.995 MHz from the factory
modified approximately 137-174 / 410-470 MHz (subject to change)
Frequency range RX (receiver)
0.1 to 1300 MHz
Transmit power
0.05 W / 0.5 W / 5W switchable
Modes
Send F3E (FM), F1D (FSK), F2D (AFSK) / Receive WFM / NFM / AM / SSB / CW
Channel spacing
33 Hz / 100 Hz / 5 / 6,25 / 8,33 / 9 / 10 / 12.5 / 15 / 20 / 25 / 30 / 50 / 100 kHz
Memory Channels
434 (alphanumeric)
Features & Functions
comfortable to use multi-scroll key and keyboard 16er
backlit LCD display
robust design (MIL-STD 810 C, D, E)
1750 Hz tone
CTCSS encoder & Evaluation (42 codes)
DCS Encoder & Evaluation (104 codes
DTMF encoder
DTMF memory
VOX function (9 sensitivity levels)
built-in ferrite antenna for AM reception
Wide / Narrow selectable stroke (12.5 kHz / 25 kHz)
simultaneous reception of two frequencies in the same band
Connecting to an external TNCs (1200/9600 bd)
Selectable squelch
Memory Shift
Key lock
Time-out Timer & APO function
Automatic simplex check
Programmable presets easily via PC (requires the programming cable PG-4Y)
ATT Attenuator (on / off)
Connection for external audio accessories
Kenwood double standard jack (2,5 / 3,5 mm) side of the device
Antenna connector
SMA connector
Power supply
with PB-42L Battery Pack (included)
or external 12-16V DC (DC jack side, negative ground)
Dimensions in mm (WxHxD)
58 x 87 x 30
Weight
250g (with PB-42L Battery Pack)

Delivery
TH-F7E transceiver
PB-42L Battery Pack (Li-Ion / 7.4V / 2000mAh)
Charger (220V AC power supply)
Antenna
Belt Clip & Strap
User manual
Weight: 0.25 kg
