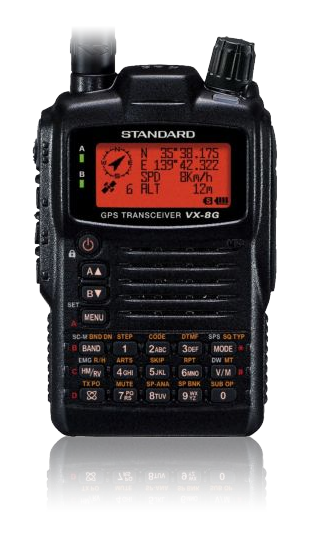

The VX-8GE APRS®/GPS is a handheld dedicated to APRS® on 144 and 430 MHz. This model allows users to acquire a VX-8 series radio without having to pay for many of the VX-8 and VX-8D features that may not be of value for their active APRS® operations.
This item ships from the UK
WebDescription:
The VX-8GE APRS®/GPS is a handheld dedicated to APRS® on 144 and 430 MHz. This model allows users to acquire a VX-8 series radio without having to pay for many of the VX-8 and VX-8D features that may not be of value for their active APRS® operations.
The built-in worldwide standard AX.25 Data TNC Modem permits uncomplicated APRS® operation. (Automatic Packet/Position Reporting System) The VX-8GE supports APRS® 1200/9600 bps data communication. You may communicate your location to other APRS® stations along with the position, speed and heading displayed on your radio. You and others will be able to see your APRS® movement on the web. The VX-8GE displays the received station’s positions, heading directions, messages, distances, icons, weather information, object, etc. With the list function you may automatically store and recall messages and the APRS® data from stations. The built-in GPS Receiver Unit provides you with real time APRS® data.
(*APRS® is a registered trademark of Bob Bruninga WB4APR)
Features:
Key Features Specifications VX-8G/E A (Main) Band RX B (Sub) Band RX TX
Heavy Duty, Tough and Rugged. Ready for your Field Operation
The VX-8G is fully ruggedized and waterproof (IPX5) design - perfect for extreme sports and outdoor use
Ultra Rugged Polycarbonate Resin Front Panel with Aluminium Die-Cast Chassis
Its high shock proof versatility will allow you to operate the radio in the toughest environments
Enjoy 5W High Power and Long Hours of Operation (The optional FBA-39 Cell Holder permits operation with 3 AA batteries.)
You will enjoy up to 5 Hours operation on 144.430 MHz with the supplied FNB-101LI Lithium-ion Battery. The optional FNB-102LI High Capacity Lithium-ion Battery will provide up to 8.5 hours on 144MHz and 8 hours on 430MHz (approximate battery operating times)
Real Dual Ham Band Operation (V+V/U+U/V+U)
With two completely independent Amateur Radio Band Receivers, you can listen to either the same or a different band simultaneously
Wideband Receive Capability
108 MHz - 999.900 MHz (A Band) in addition to Amateur Radio bands, aircraft, public service channels, etc.
The Large LCD Display Provides Clear and Easy To Read Indication
The large LCD display shows everything needed for your advanced operations, including the main and sub band frequencies, operating mode and S-meters. A high resolution Spectrum Analyser allows viewing operating activity on channels above or below the current operating channel. It is very easy to scroll through the set menu items to check the previous settings and make new selections as well
Four Independent Durable Buttons on the Side, Together with the Front Numeric Keypad, Afford Easy and Dependable Operation!
In addition to the PTT and the T-Call (1750Hz Repeater Access Tone) buttons, the often used F (Function) and Vol keys have been conveniently located on the side of the radio. Improved ergonomics and the simple function keys, allow quick versatile selections.
The front numeric keypad buttons perform multiple functions by pushing the "F" (Function) Key on the side, or pressing and holding the key button Independent A and B Band Keys with TX/Busy Indication
The "A" and "B" band indicators, on the left side of the large LCD display, will let you know your operating condition at a glance
Built-In GPS
Take full advantage of the VX-8G GPS functions with its built-in GPS unit/antenna.
Dual Band AF Dual Monitor Function
You can listen to the AM or FM broadcast radio while monitoring two HAM frequency channels! When the radio receives a signal on either the "A" or the "B" Amateur Band, it will mute the AM/FM broadcast and switch operation to the Amateur Band that the VX-8G is receiving
Vibrate Alert Function When a Message is Received
Chose a vibrate pattern from three styles, to alert on message and bell ringer reception
APRS® 1200/9600bps Data Communication (B Band Only) Using the Worldwide Standard AX25 Data TNC Modem
The Built-in AX25 Data TNC Modem permits uncomplicated APRS® (Automatic Packet/Position Reporting System) operation. The VX-8G supports APRS® 1200/9600bps data communications in Band "B" Only. You may communicate your location to other APRS® stations with the position, speed and heading displayed on your radio
Additional info on the APRS® 1200/9600 bps data communication (B band only):
-Smart Beaconing ™ Function: When using APRS® for position tracking, the beacon timing is automatically adjusted to your traveling speed and location to plot a smoother trace to match your position and movement on a map
- The number of Station List memories has increased from 40 to 50
- The number of APRS® Message memories has increased from 20 to 30
- DIGI-PATH route indication function: The APRS® Packet data includes Digipeater routing info
- The Message received LED flashing rate is selectable
- The number of DIGI-PATH route settings is increased from 1 to 7
The VX-8G has Many Additional Features to Support Active Outdoor Operations. To name a few:
CW Learning and training - Emergency Automatic ID (EAI) function - Built-in CTCSS/DCS encode/decode - Easy access to the WIRES-II Internet Linking System - Password Protection - GPS compass, and much more.
GENERAL
Frequency Ranges
108 - 999.90MHz (in 7 Bands)
108 - 580 MHz (in 6 Bands)
144 - 146 MHz
430 - 440 MHz
Emission Type
F1D, F2A, F2D, F3E
Repeater Shift
±600 kHz (144 MHz), ±1.6, 5.0, 7.6 MHz (430 MHz)
Antenna Impedance
50Ω
Current Consumption
200mA (Mono Band Receive)
(@ 7.4VDC, approx)
240mA (Dual Band Receive)
86mA (Mono Band Receive, Standby, Saver OFF)
120mA (Dual Band Receive, Standby, Saver OFF)
42mA (Dual Band Receive, Standby, Saver ON (ratio 1.5)
2mA (Auto Power Off)
1.7A (144 MHz, 5W TX)
1.9A (430 MHz, 5W TX)
Case Size (WxHxD, mm)
60 x 95 x 28 (without knob and antenna)
Weight (Approx, g)
250 with FNB101LI & Antenna
Supply Voltage (AC Charger)
6.0VDC @ 1.0A
TRANSMITTER
RF Power Output
1.0W (@ 4.5V: AA x 3)
5.0W (@ 7.4V or EXT DC)
L3: 2.5W, L2: 1W L1: 0.05W (@ 7.4V)
Modulation Type
F2E, F3E: Variable Reactance
Spurious Emission
At least 60dB below (@ TX power HI/L3)
At least 50dB below (@ TX power L1/L2)
RECEIVER
Circuit Type
Double-Conversion Superheterodyne
IF
1st: 47.25 MHz (A (Main) Band), 46.35 MHz (B (Sub) Band),
2nd: 450 kHz.
Sensitivity
1.5µV (Typ) for 10dB SN (108-137 MHz @ AM)
(some examples; see VX-8G's Data
0.16 µV for 12dB SINAD (140 - 150 MHz @ NFM)
Sheet for full specifications)
0.18 µV for 12db SINAD (400 - 470 MHz @ NFM)
1.5 µV (TYP) for 12dB SINAD (800 - 999.90 MHz @ NFM)
Selectivity
12 kHz/35 kHz (+6dB/+60dB: NFM, AM)
AF Output
200 mW @ 8 Ohms for 10% THD (@ 7.4VDC)
400 mW @ 8 Ohms for 10% THD (@ 13.8VDC)
