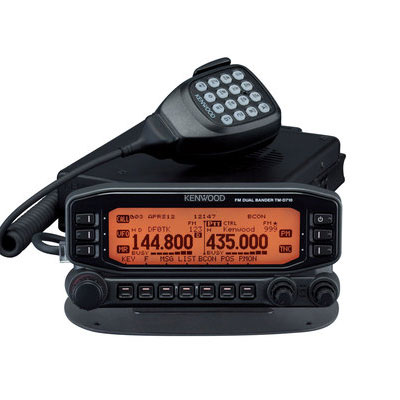

The new TM-D710A Dual band transceiver features such as the TM-V71E Echolink via the known functions, but covers also thanks
built-in TNC and APRS Packet Radio (Stand Alone) function of the TM-D700E from.

Compared to its predecessor are specifically in the area APRS significant enhancements in functionality and ease of use has been made.

As the TM-V71E TM-D710A is also shipped from the factory with DTMF microphone.

Technical data

Frequency range TX (transmitter)
144-146 / 430-440 MHz
Frequency range RX (receiver)
118-524 MHz / 800-1300 MHz
Transmit power
switchable 5 / 10 / 50 W (VHF / UHF)
Modes
F3E (FM), F2D, F1D
Channel spacing
5 / 6,25 / 8,33 (only in the aeronautical field) / 10 / 12.5 / 15 / 20 / 25 / 30 / 50 / 100 kHz
Memory Channels
1010 alphanumeric
Features & Functions
large illuminated display (235x65 dots)
EchoLink Sysop Mode for use as Echo-Link Node
Echolink memories
DTMF encoder & Storage
built-in APRS & Weather Station Features
CTCSS encoder / Ausweter
DCS encoder / Ausweter
variety of search functions (VFO, CTCSS, memory, etc.)
built-in TNC (1K2 9K6 /) compliant with AX.25 protocol
Presets programmed via PC
Power On Text
Programmable power-on password
Wide / Narrow Deviation
1750 Hz tone
Automatic Simplex Checker
Automatic repeater shift
Key tones on / off
APO function
Timeout timer activated
Data Connection for External TNC
Mini DIN 8-pin Com Port
Full dual-band operation: V + V / V + U / U + U
Simultaneous reception of two frequencies
GPS connection (NMEA 0183)
Advanced Intercept Point (AIP VHF & UHF)
Microphone
Western
Antenna connector
N female
Power supply
13.8 V DC max. 13A
Dimensions in mm (WxHxD)
140 x 44 x 158 (without front panel)
Width of the front panel put off: 156mm
Weight
1.5 kg

Delivery
TM-D710A transceiver
DTMF Hand Microphone
Microphone holder
DC Cable
GPS cable
Modular Plug Cable for demand-supply
Line Filter
Mobile mounting bracket
Panel support (for Station & Mobile Operation)
Instructions
CD-Rom with detailed information about the operation
Weight: 1.16 kg
