Maas HCS 3400 1-15V, 0-40A Bench Power Supply

Powerful fan cooled bench power supply with a modern switching power supply technology, compact dimensions and high RF immunity.

This item ships from the UK

Product Info
Reviews
Shipping info

WebDescription:

Powerful fan with a modern switching power supply technology, compact dimensions and high RF immunity.

The ventilator automatically adapts to the currently required performance and does not run continuously at full speed.

Output voltage and ampere are infinitely variable and the digital display to read.

With this power supply you can make basic settings for three volts and amps and so prepare the network device, eg for different tasks.

Specifications

Operating voltage	200-240 VAC 50/60 Hz
Output voltage	1-15 volts DC regulated
Output current	0-40 amps adjustable
Efficiency	85.5%
Ripple & Noise	(Rms) voltage: 5 mV peak-peak voltage: 50 mV
Voltage Regulation	Load Voltage Regulation (10-100% load): 50 mV Voltage Regulation Line (170-264V AC): 20 mV
Current Regulation	Current Regulation Load: 150 mA Current Regulation Line (170-264V AC): 50 mA
Power Factor Control	Power factor correction> 0.95 at optimal load

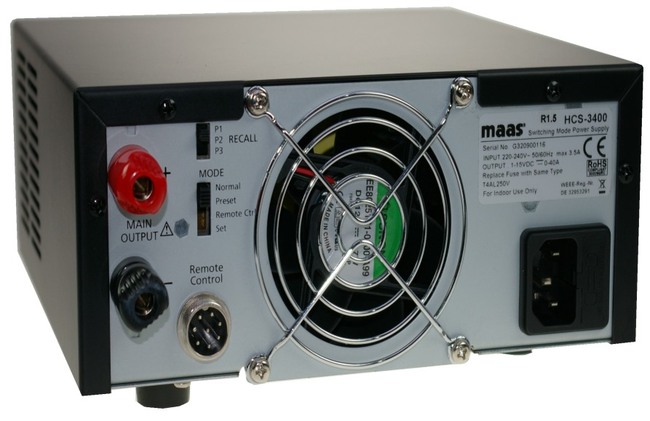

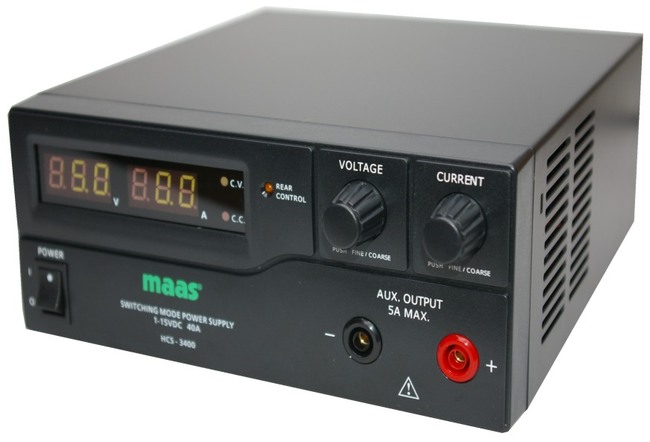

Features & Facilities	Digital display (2 x 3-digit LED for Volt and Ampere separately Output connectors on the front for small consumers (up to 5 amps) Main ports on the back (up to max. 40 amps) Socket for remote control on the back (wired remote control is possible) Controller for volts and amps can be converted in behavior. Either "smooth" and very precise and simply faster
Security	Protection against overload Overvoltage protection (AC input) Protection against overheating Glass fuse accessible from the outside (next to the power inlet)
Dimensions (WxHxD)	220 x 90 x 215 mm
Weight	about 2.6 kg

Delivery

MAAS HCS-3400 power supply

AC power cord plug with chocolate

NC plugs for DIY Remote Control

Instructions

Weight: 3.5 kg

Reviews:

Operating voltage	200-240 VAC 50/60 Hz
Output voltage	1-15 volts DC regulated
Output current	0-40 amps adjustable
Efficiency	85.5%
Ripple & Noise	(Rms) voltage: 5 mV peak-peak voltage: 50 mV
Voltage Regulation	Load Voltage Regulation (10-100% load): 50 mV Voltage Regulation Line (170-264V AC): 20 mV
Current Regulation	Current Regulation Load: 150 mA Current Regulation Line (170-264V AC): 50 mA
Power Factor Control	Power factor correction> 0.95 at optimal load
Features & Facilities	Digital display (2 x 3-digit LED for Volt and Ampere separately Output connectors on the front for small consumers (up to 5 amps) Main ports on the back (up to max. 40 amps) Socket for remote control on the back (wired remote control is possible) Controller for volts and amps can be converted in behavior. Either "smooth" and very precise and simply faster
Security	Protection against overload Overvoltage protection (AC input) Protection against overheating Glass fuse accessible from the outside (next to the power inlet)
Dimensions (WxHxD)	220 x 90 x 215 mm
Weight	about 2.6 kg

Delivery

MAAS HCS-3400 power supply

AC power cord plug with chocolate

NC plugs for DIY Remote Control

Instructions

Weight: 3.5 kg
