LDG AT-1000 PRO-II automatic antenna tuner

automatic antenna tuner from LDG for high performance (up to 1000 watts SSB).

Tell a Friend
£479.99

Ships from the UK

WebDescription:

automatic antenna tuner for high performance (up to 1000 watts SSB).

  • 2000 Memory for your preferred frequencies
  • LED indicators (among others for power & SWR display, bypass, etc.)
  • 2x antenna switch

    Specifications

    Frequency range
  • 1.8-54 MHz continuous
    		•
    max. Transmission power
    • at 1.8 - 30 MHz max. 1000 Watts PEP SSB / max. 750 watts CW / max. 500 watt digital modes RTTY, Packet, etc.
    • at 50 MHz maximum 250 Watts (all modes)
    Transmission power for tuning
  • 5 - 125 watts
    		•
    Tuning time
  • typically less than 10 seconds (with memory operation typically 0.2 seconds)
    		•
    Fitting
  • 6-1000 ohms to 30 MHz (16 - 150 ohms in the 6m band)
  • 6-4000 ohms with optional 4:1 Balun LDG RBA 4:1
    		•
    Connections
  • 3 PL 50 ohm connectors (ANT1 / ANT2 / TX)
  • 1 grounding screw
    		•
    Power supply
  • 11-16V DC / 1A (DC cable included)
    		•
    Dimensions
  • approximately 25.4 x 28 x 8 cm
    		•
    Weight
  • about 2.5 kg
    		•

    Interface cable for connection to the transceiver are not included and are available as an option for various ALINCO, ICOM & Yaesu transceivers!

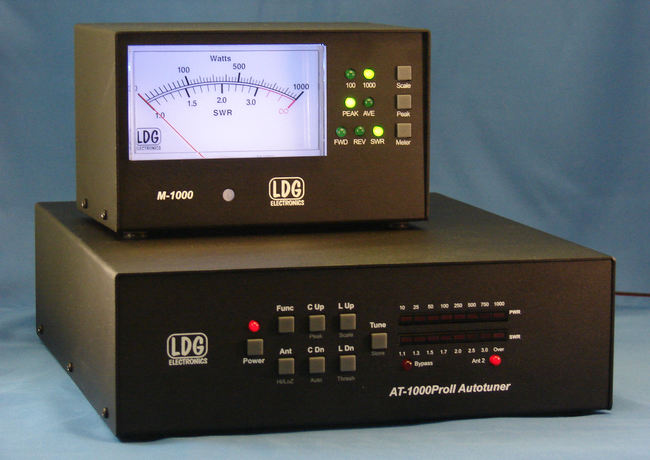

    The illustration shows the optional SWR-/Wattmeter M-1000. This is not included and is also available as an option
    Weight: 2.5 kg

    • Shipping info: Ships from the UK
