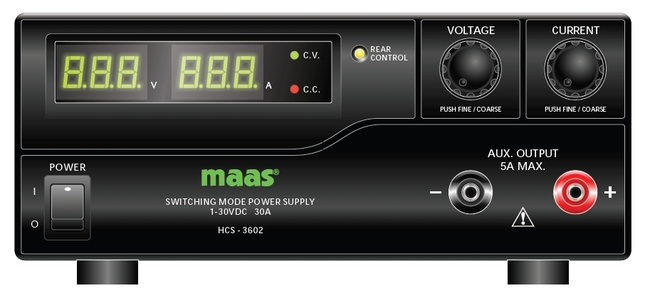

MAAS HCS-3602 Power Supply 1-30V DC / 0-30 A

Delivery is expected in late July - Taking Pre-orders NOW

1-30V DC, 0-30A

Powerful fan with a modern switching power supply technology, compact size and high RF immunity.

The fan automatically adapts to the actual required capacity and does not run constantly at full speed.

Tell a Friend
£354.99

Shipping from UK

WebDescription:

Delivery is expected in late July

Powerful fan with a modern switching power supply technology, compact size and high RF immunity.

The ventilator automatically adapts to the actual required capacity and does not run constantly at full speed.

Output voltage and ampere are infinitely variable and the digital display to read.

With this power supply you can make three basic settings for volts and amps and so prepare the network device, eg for different tasks.

Specifications

Operating voltage
  • 200-240 VAC 50/60 Hz
    		•
    Output voltage
  • 1-30 volts DC regulated
    		•
    Output current
  • 0-30 Amp regulated
    		•
    Efficiency
  • 85%
    		•
    Ripple & Noise
  • (Rms) voltage: 5 mV
  • peak-peak voltage: 50 mV
    		•
    Voltage Regulation
  • Load Voltage Regulation (10-100% load): 50 mV
  • Voltage Regulation Line (170-264V AC): 20 mV
    		•
    Current Regulation
  • Current regulation Load: 200 mA
  • Current Regulation Line (170-264V AC): 50 mA
    		•
    Power Factor Control
  • Power factor correction> 0.95 at optimal load
    		•
    Features & Facilities
    • Digital display (2 x 3-digit LED Volt and Amp separated
    • Output ports on the front for small loads (up to 5 amps)
    • Main ports on the back (up to max. 30 amps)
    • Socket for remote control on the back (wired remote control possible)
    • Controller for voltage and amperage can be changed in behavior. Either "smooth" and very precise or simply faster
    Security
  • Protection against overload
  • Overvoltage protection (AC input)
  • Protection against overheating
  • Glass fuse accessible from the outside (next to the power inlet)
    		•
    Dimensions (WxHxD)
  • 220 x 90 x 275 mm
    		•
    Weight
  • approximately 4.2 kg
    		•


    Delivery

  • MAAS HCS-3602 power supply
  • AC power cord with grounded plug
  • NC-plug for DIY Remote Control
  • Instructions
    Weight: 3.5 kg

    • Shipping info: Shipping from UK
